1. networking preparation

1.1 network preparation

Broadband or 4G network card (Aweseed 4G part of the router built-in flow card, no additional card purchase)

1.2 Equipment preparation

Aweseed router, cable, video recorder & camera

The Aweseed router selection reference is as follows. This article takes R300 as examples:

The above number of access paths is based on a 4 million-pixel camera, which is subject to the actual deployment network environment.

Aweseed equipment parameters are updated in official website without notice.

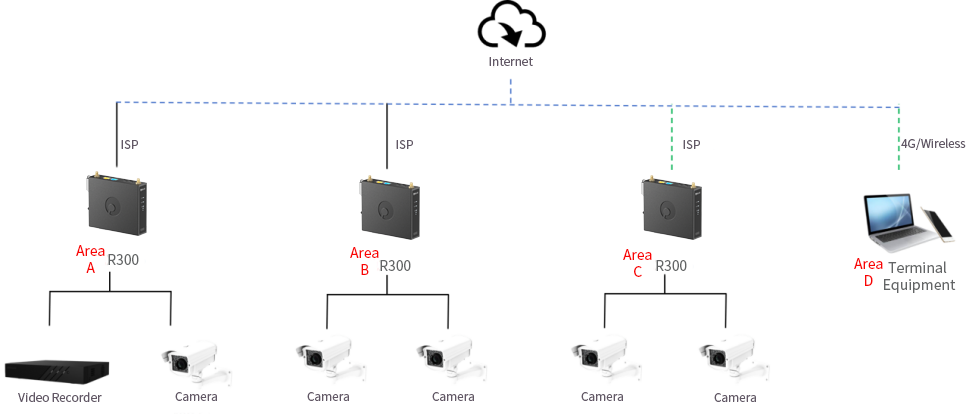

2. networking topology diagram

The following requirements can be fulfilled:

1. • • centralized storage: cameras at places B and c are transmitted to place a for storage;

2. • • remote access: access the video images of the other two places in place a/place B/place c (including video content playback in the video recorder, etc.);

3. • • remote configuration: modify the configuration of video recorders and cameras everywhere at any place in place a/place B/place c

4. • • access/configuration at any time: mobile phone/computer login Aweseed client to view the video screen of place a/place B/place c or modify the configuration


       3. networking tutorial

(1) computer browser input https://p.oray.com/en login Aweseed management platform

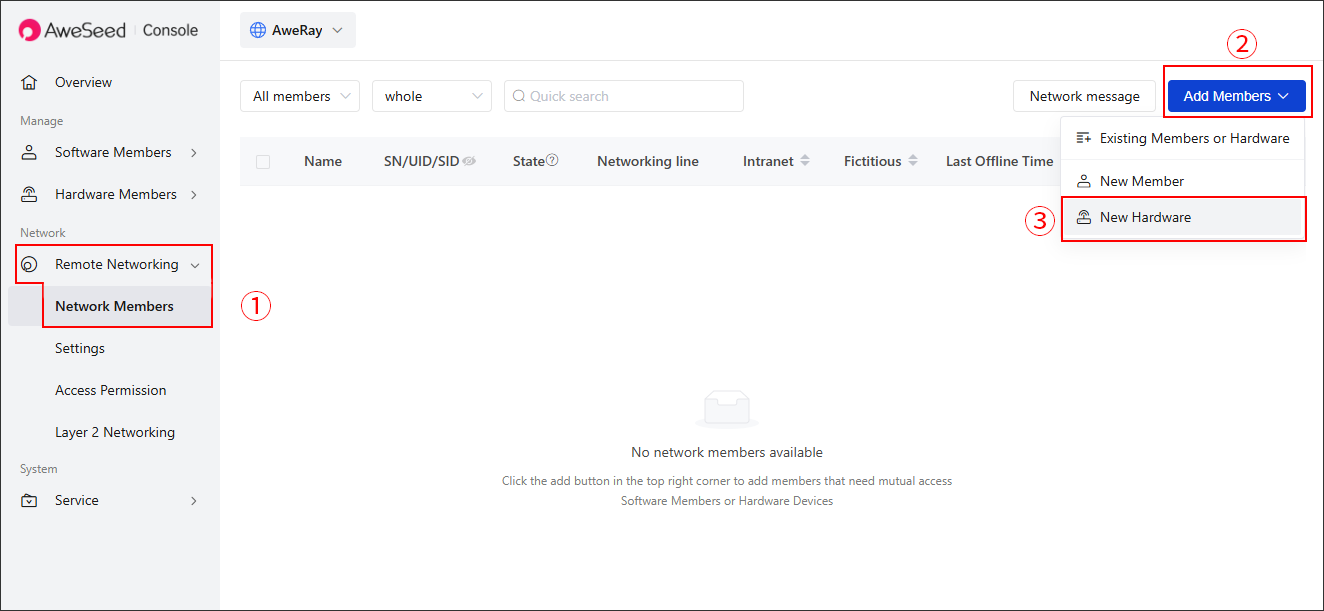

(2) Click [SD-WAN]-[Create Network]-[Add Members]-[New Hardware], enter the SN number on the sticker on the back of the Aweseed router body to add the router to the network, and when the router indicator turns blue and stays on, the networking is successful.

Note: When the LAN IP (such as 10.168.1.1) of the router in the network is the same, the network will be abnormally inaccessible and needs to be adjusted, such as 10.168.1.1 in A and 10.168.2.1 in B...

3. Camera Configuration

Generally, the camera is configured as a static IP to access the Internet, and the IP address of the camera needs to be adjusted to the DHCP range of the directly connected Aweseed router. If the IP address range of the Aweseed router LAN in place a is 10.168.1.0/24, the camera IP needs to be adjusted to 10.68.1.X

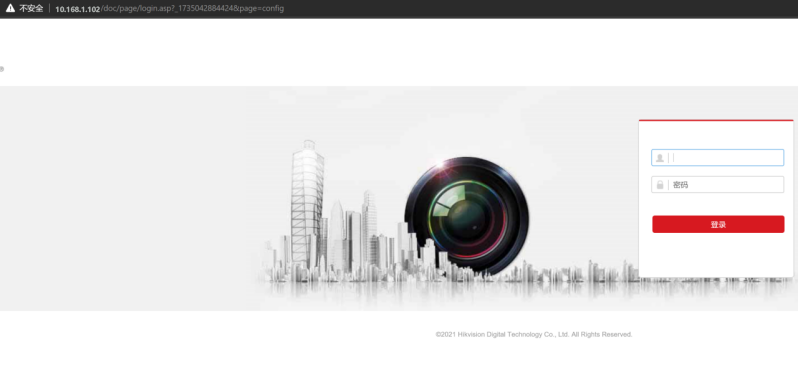

The browser accesses the camera management page, and the setting path is: [configuration]-[network]-[basic configuration]-[TCP/IP]

4. VCR Configuration

(1) Webpage Add Camera

The browser accesses the video recorder management page and sets the path as follows: [Configuration]-[System]-[Channel Management]-[Check Channel]-[Modify]

(2) Client Add Camera

Open the video recorder management page, and set the path to: [Configuration]-[Channel Management]-[Channel Configuration]-[Custom Add]

5. Computer/mobile access or configure camera/video recorder

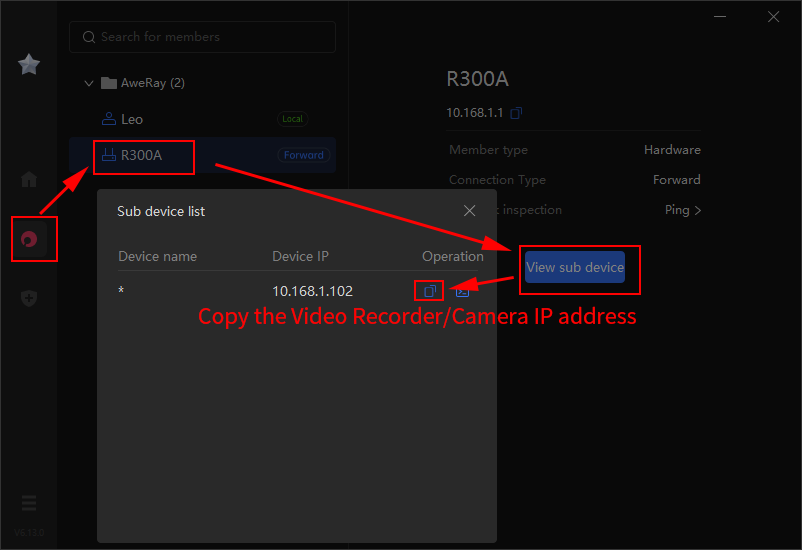

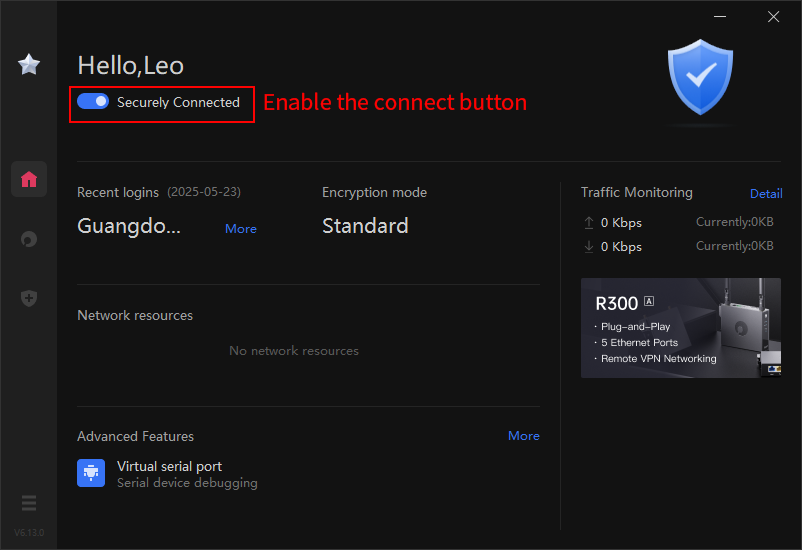

Download and log in to the Aweray Aweseed client, enter the IP address of the video recorder/camera in the browser to access or configure
