1. Current Situation of the Industry

With the development of the enterprise, the company usually has different business sectors, involving as many as 10 business systems, including OA office automation system, ERP purchase, sale and storage software and file servers, etc. Today, the office system is not only a platform for daily collaborative office work, but also a management support platform for enterprises or organizations, which plays a more complex and comprehensive role.

Enterprise managers or operation and maintenance engineers, on vacation at home or on a business trip, want to remotely access the company's internal system data or debug the server, must overcome the geographical, network and system barriers, due to the different networks in different regions, so that remote office interconnection has become a problem. In view of this situation, Aweseed have given a set of perfect solutions, and then we will introduce.

2 The Aweseed Advantage

1. Break the geographical and network restrictions, and can network in different places without public network IP;
2. Travel personnel can also realize remote office through Aweseed client, compatible with major system platforms;
3. The networking function is simple to operate, the technical threshold is low, and the small white network can also be easily built in three steps;
   4, network transmission through encryption processing, to ensure the security of internal data, effectively reduce the cost of time.


3. Build steps

3.1 wiring to the Internet

3.1.1 Equipment Wiring

1.Connect one end of the network cable to the blue WAN port of the router and one end to the Internet (such as broadband cat, optical cat, etc.);
2.router yellow LAN port can access NAS, computers and other networking equipment;
Note: If you want to configure the router wirelessly through a laptop, tablet, mobile phone, etc., you can't connect the computer here.
3.Connect the power adapter.

3.1.2 Equipment Networking

(1)Computer browser access http://oraybox.com. The initialization of the device system will enter device configuration.

(2)Choose internet access method.

(3)WIFI configuration.

(4)Set Management Password.

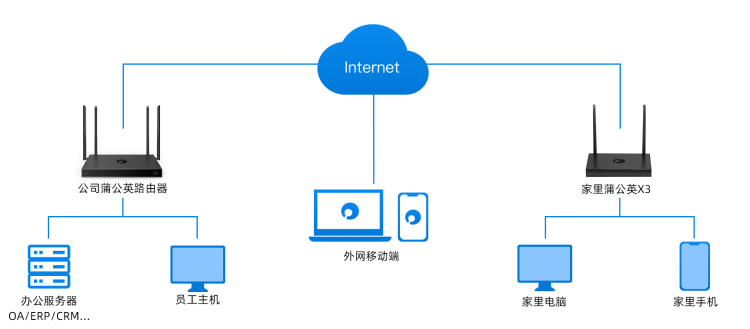

3.2 build a network

[Click to view intelligent networkingTutorial]

3.3 Remote access

3.3.1 Access Prerequisites

To achieve external network access to the company's headquarters office system, the premise is that the headquarters of the office system in the company's local LAN access to normal.
Taking the Windows building IIS as an example, the company's network environment can normally open the IIS website service on the browser through the IP of the server.

3.3.2 Home Aweseed

The computer host under the Aweseed router at home can be accessed directly by entering the address of the headquarters server just like in the company intranet without installing any additional software client.

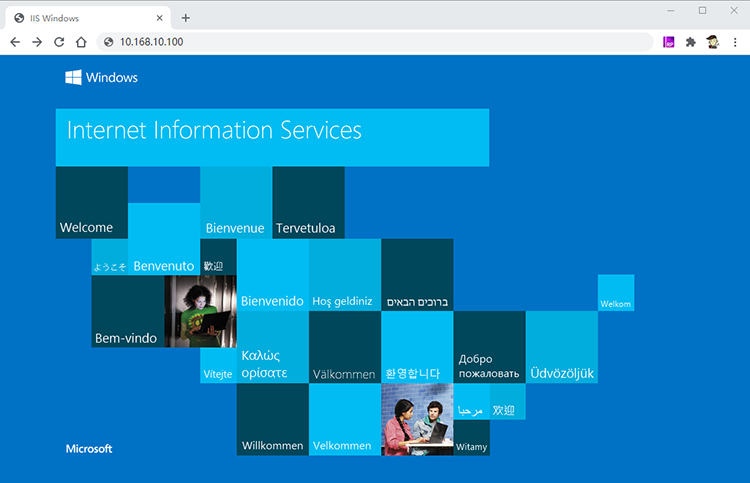

① IIS system:

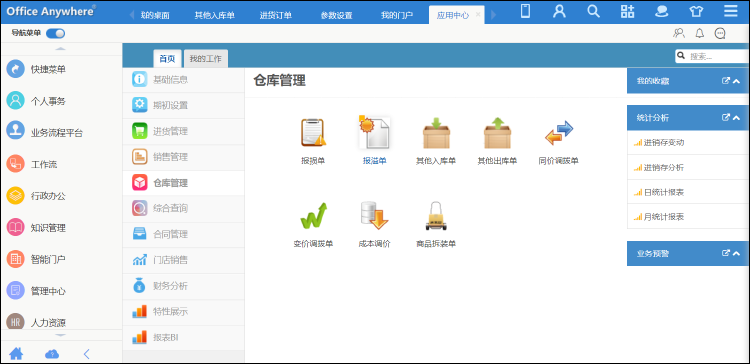

② Office system:

3.3.3 External Network Mobile End

Mobile personnel can install Aweseed access terminals on corresponding computers or mobile phones to access the data of the company headquarters.
The Aweseed client supports major mainstream operating systems in the market. You can visit the download page (jump stamp me) on the Aweseed official website, and select the version of the corresponding operating system to download, install and log in.

!

3.3.3.1 Computer side

The following is an example of a Windows access terminal (please stamp for specific tutorials)

(1) Login Client

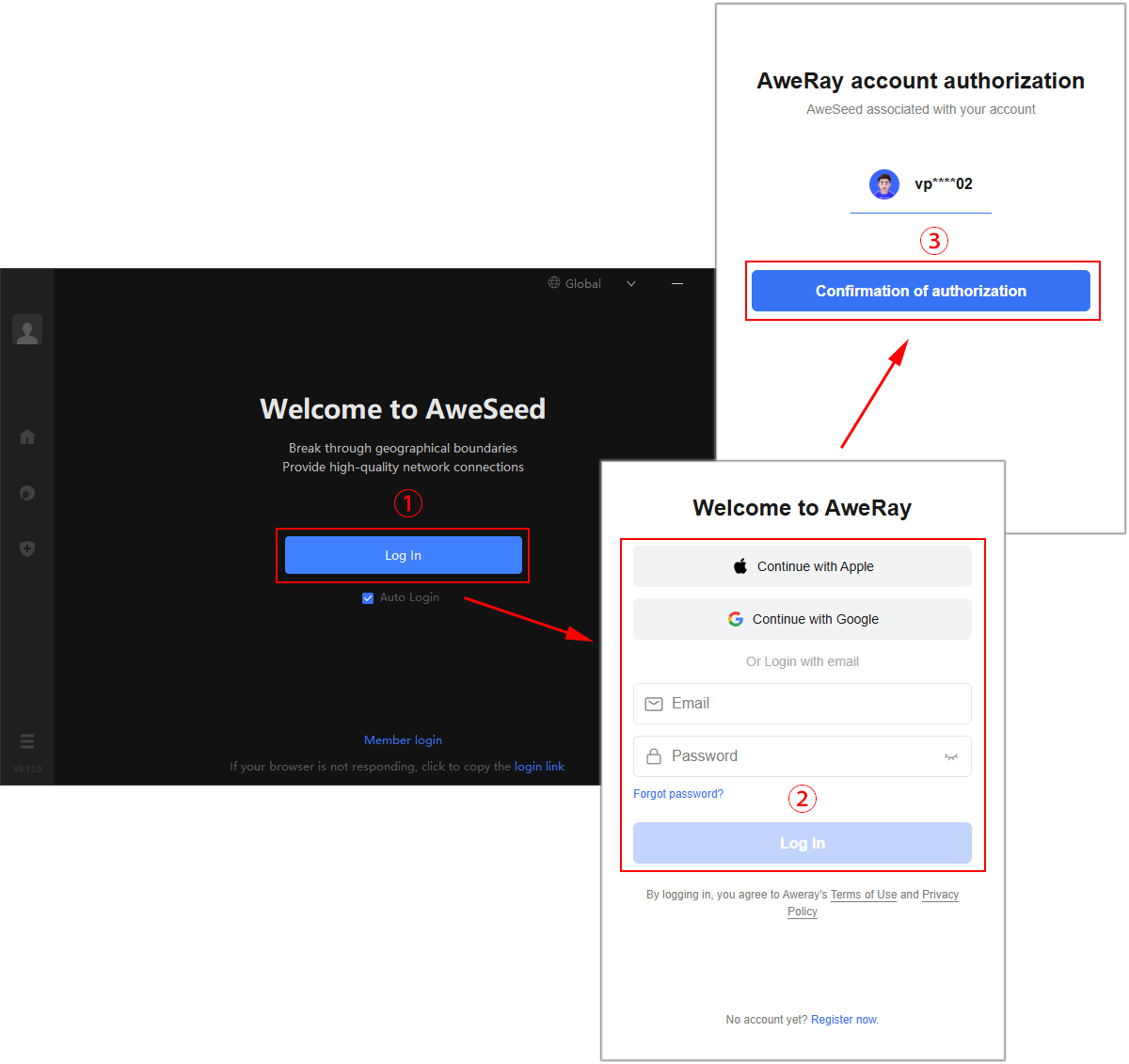

① The Aweray Aweseed client supports a variety of login methods.

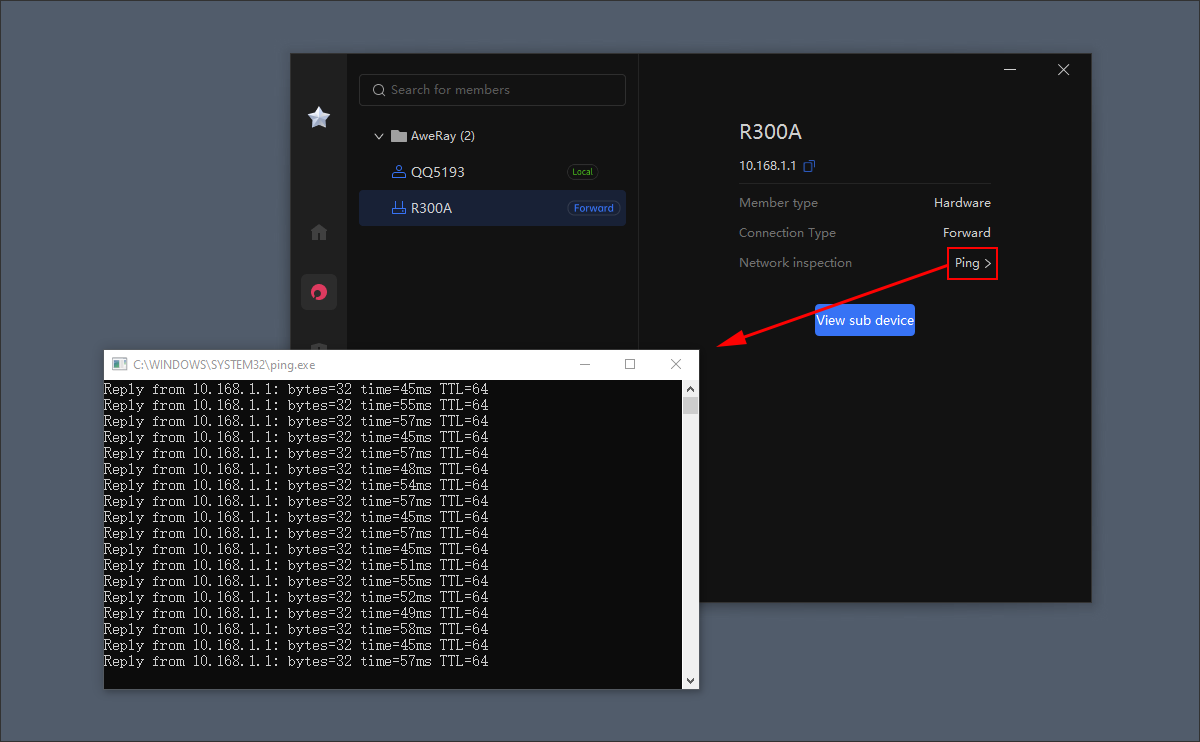

② After logging in to the corresponding client account, click " Network icon ", select the corresponding member, and click " PING " of the network test to perform the PING test. If a reply is received, it means that the networking channel has been established;

At this time, the computer of the mobile office staff can also be accessed directly through the IP address of the headquarters server as in the company intranet.

IIS System:

At this point, the introduction of the Aweseed intelligent networking telecommuting operation guide is over. Thank you for watching!
