R300 Series Tutorial

1. Product Introduction

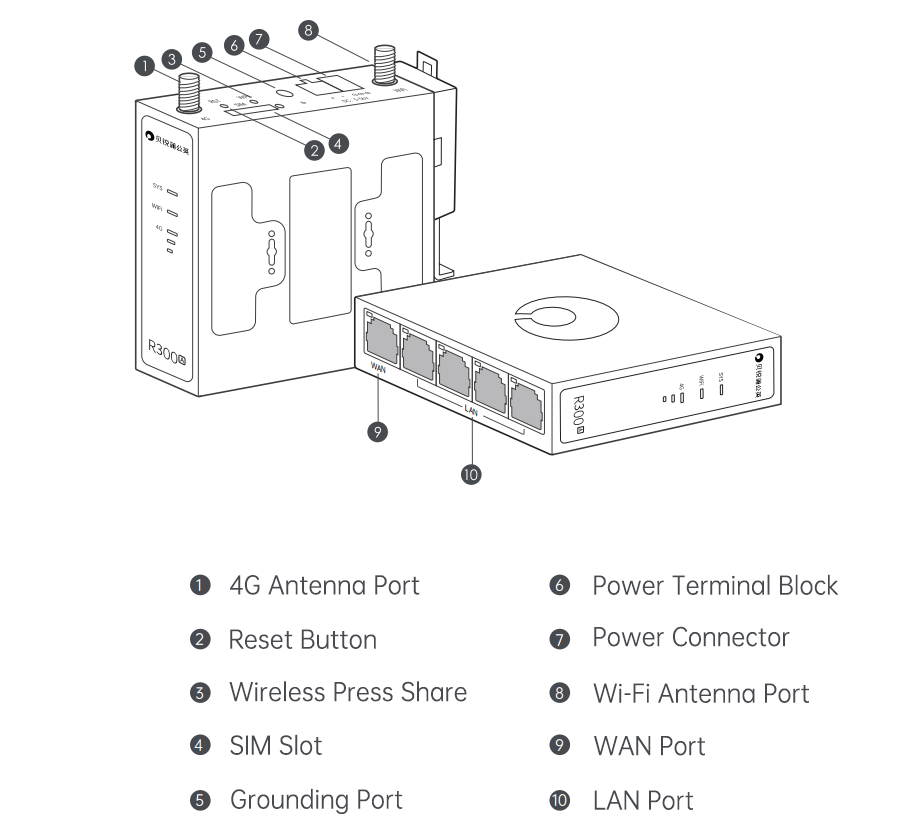

1.1 interface information

1.2 indicator status

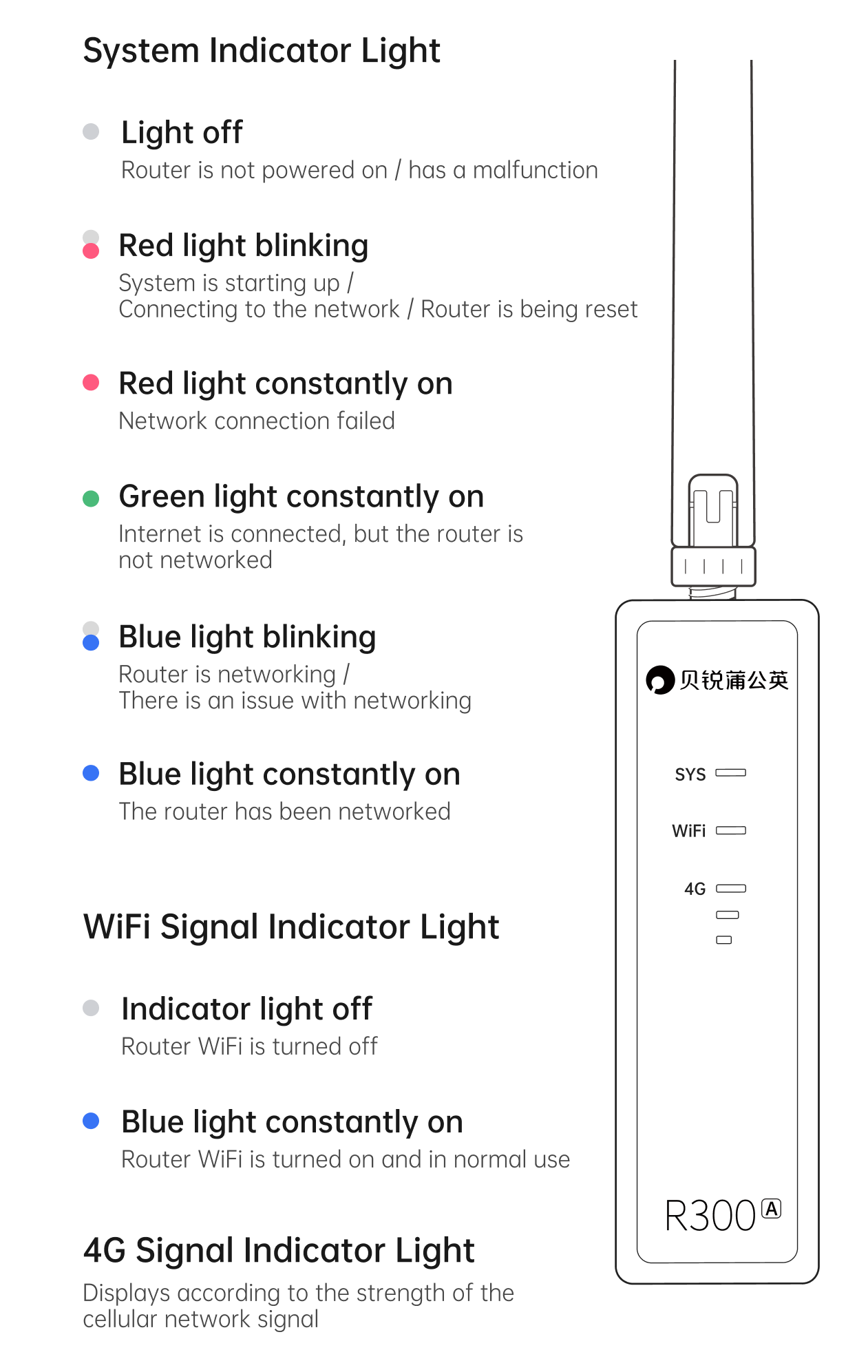

Aweseed R300A as an example, there are three types of indicator lights on the front panel, namely SYS system indicator light, WIFI signal indicator light and 4G signal strength light. The detailed introduction is shown in the following figure:

2. Product Installation

Installation of 2.1 Antenna

Connect the WiFi signal antenna (short) and 4G signal antenna (long) to the corresponding connection port respectively and turn the knob to tight.
! []( https://public-cdn.oray.com/help/6f490f98a2991293fb09579b2872e581) " Note ": the corresponding connection port can refer to the interface information.

2.2 power connection

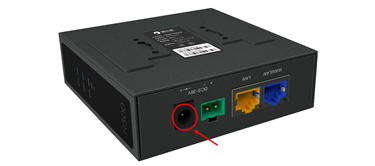

Connect the power adapter to the power interface (the interface circled in red in the figure below).
Note: Use the power adapter included in the box.

2.3 network cable connection

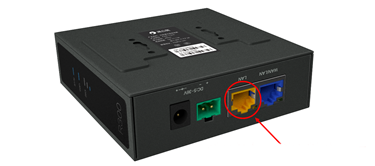

Connect both ends of the network cable to the network port of the computer and the LAN port of R300.

3. Router Configuration

(1) Aweseed router provides a simple and easy-to-use Web configuration page, you can easily complete the Internet configuration through the Web wizard. Before configuration, please make sure that the network port (LAN interface) of the computer and the router is connected through a network cable, and the host is set to automatically obtain an IP address or specify a static IP address according to the above guidelines.

(2)Computer browser access http://oraybox.com.The initialization of the device system will enter device configuration.

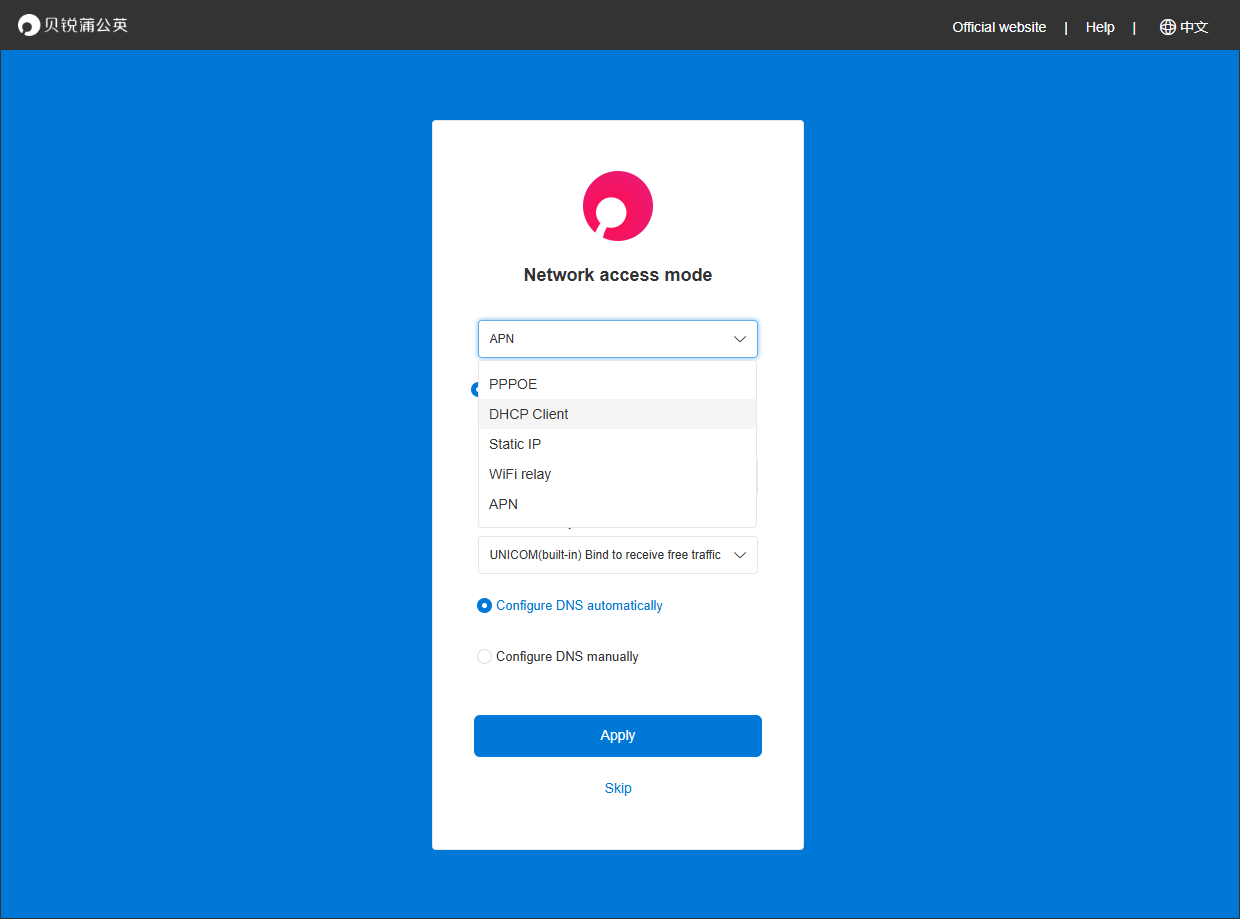

(3)Choose internet access method.

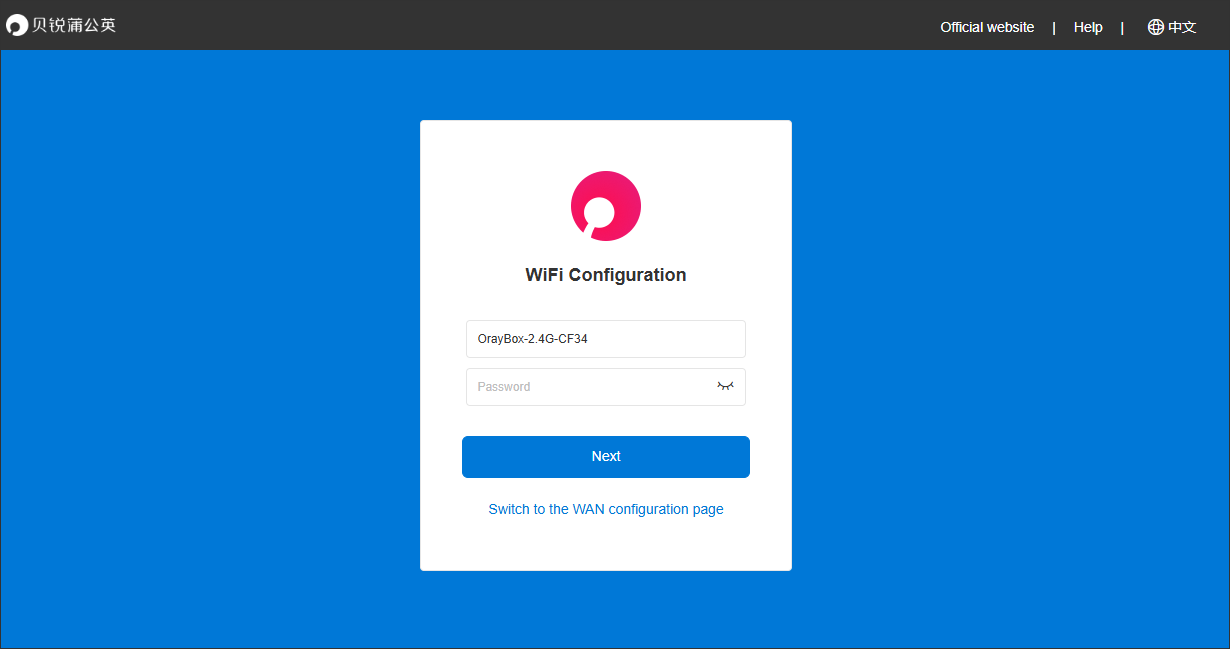

(4)WIFI configuration.

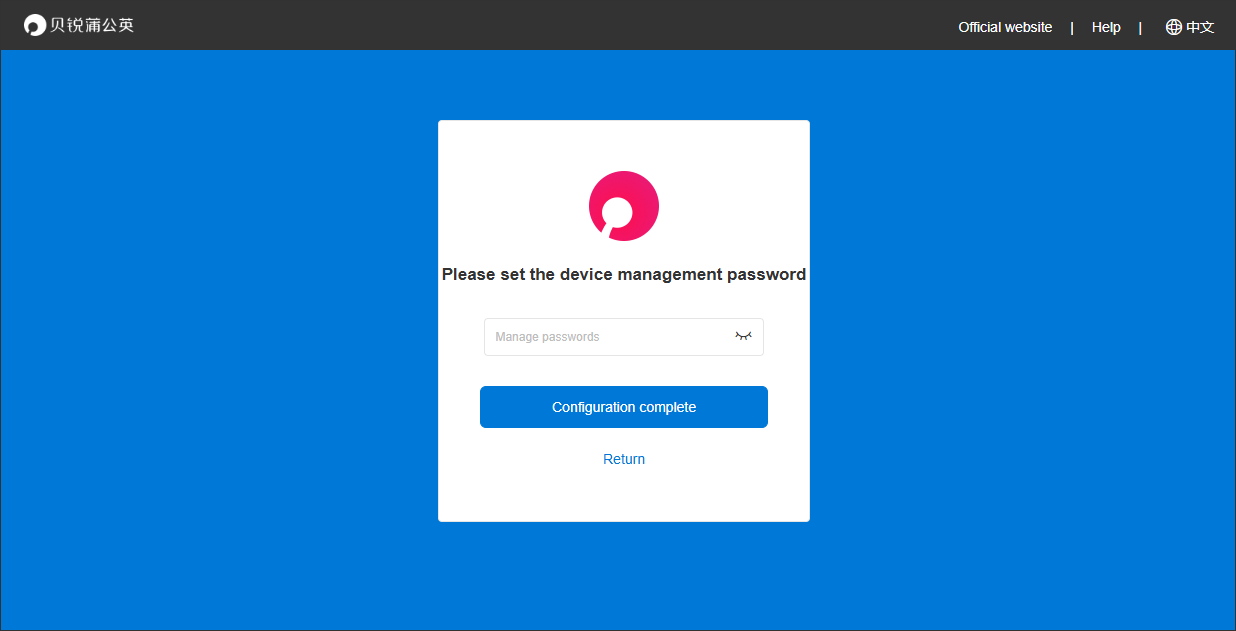

(5)Set Management Password.

4.Change Internet Access Method

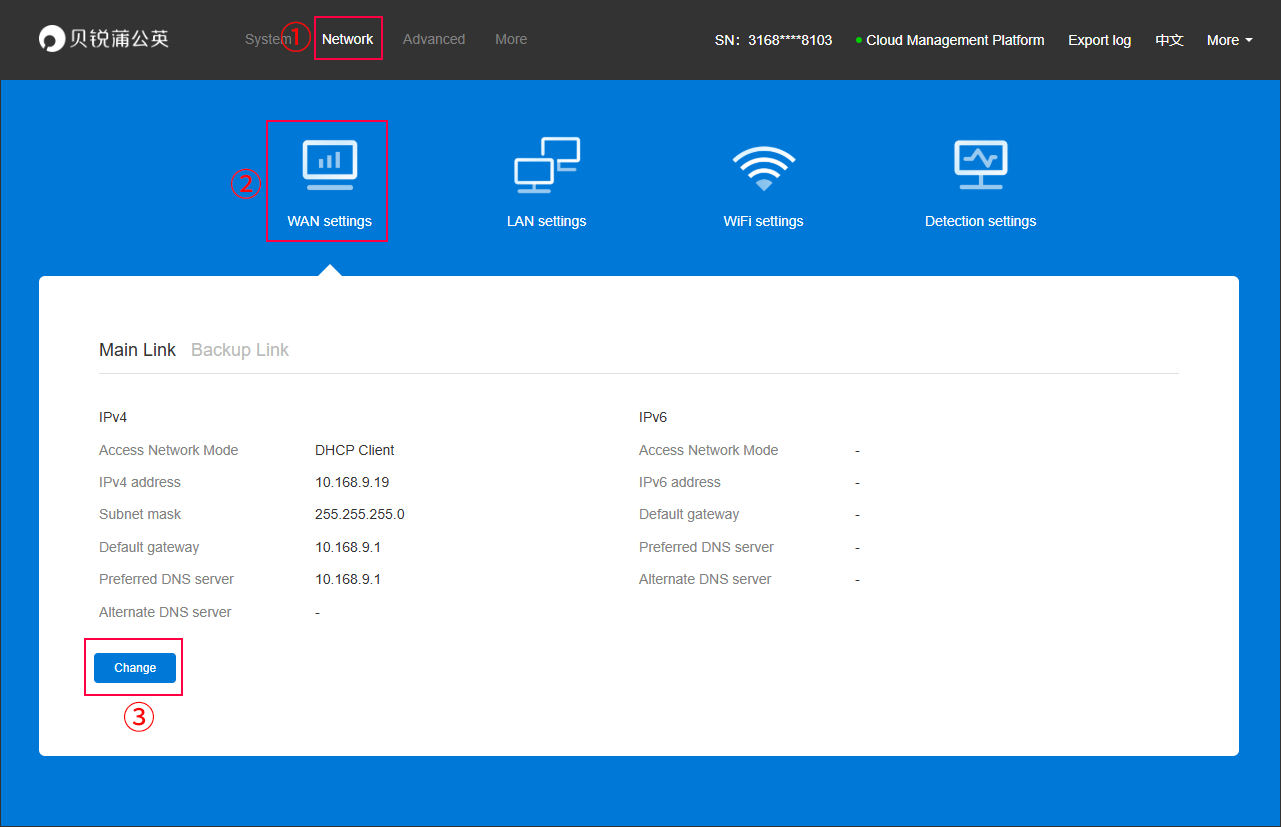

If you are unable to connect to the internet, you can access the local management page of AweSeed and switch the internet access method according to the network situation.

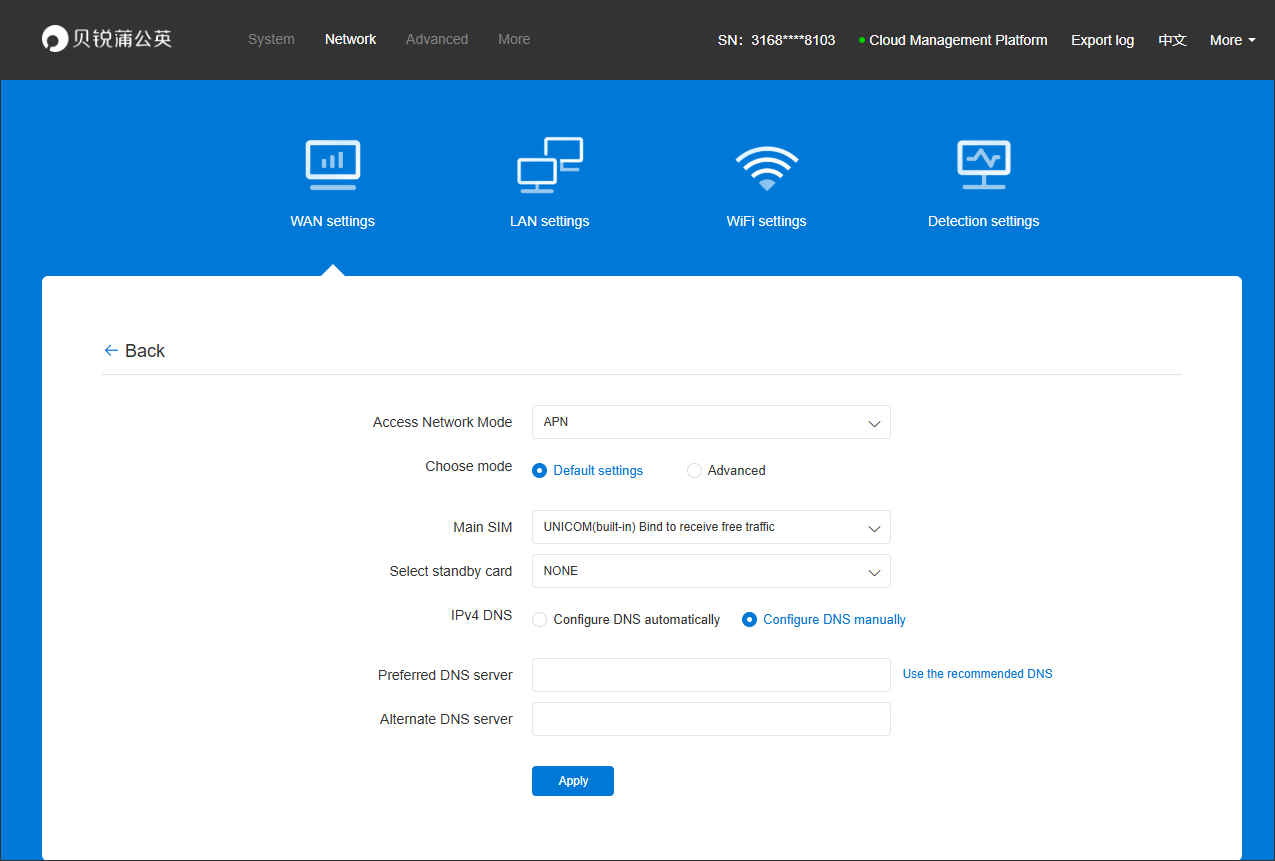

4.1 APN

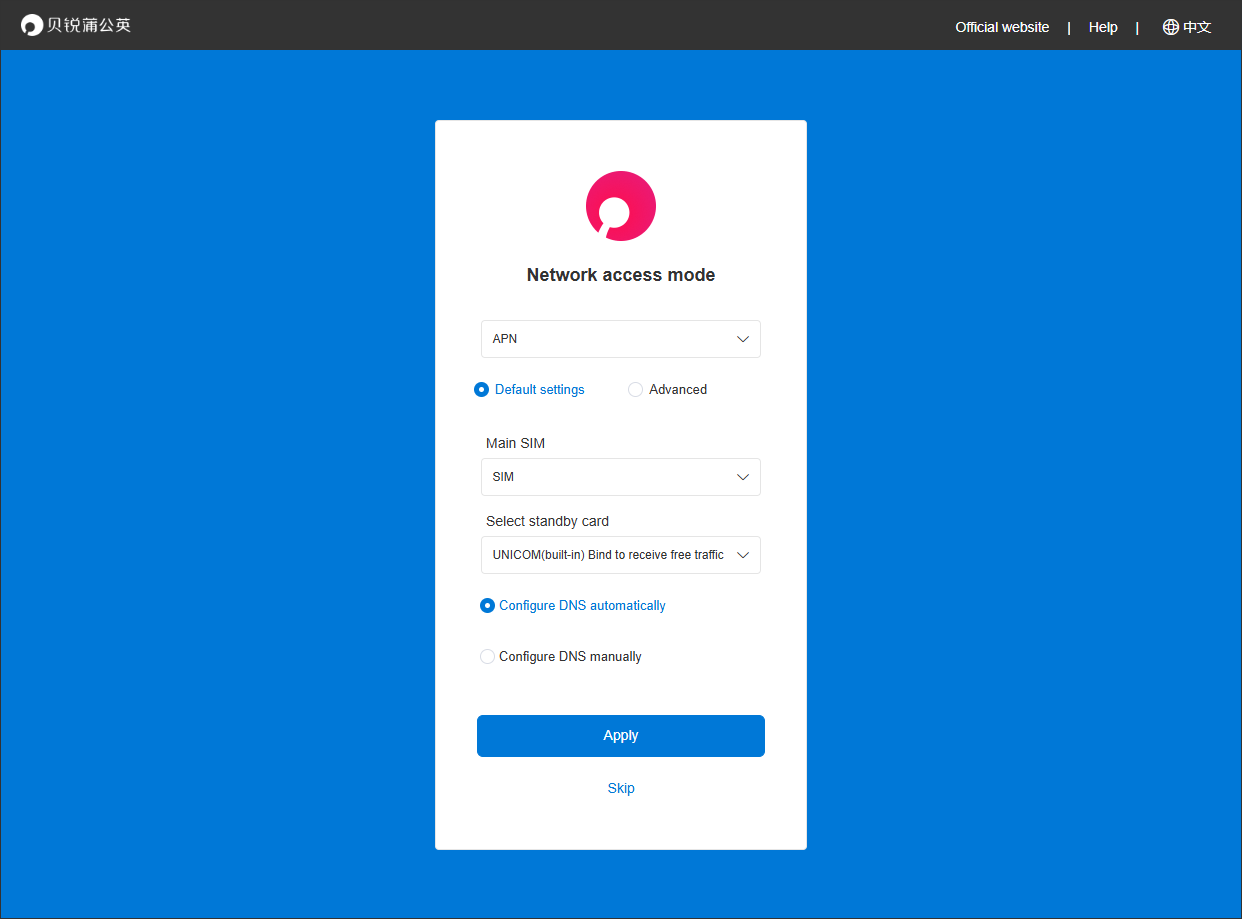

Connect To The Internet Via SIM card.

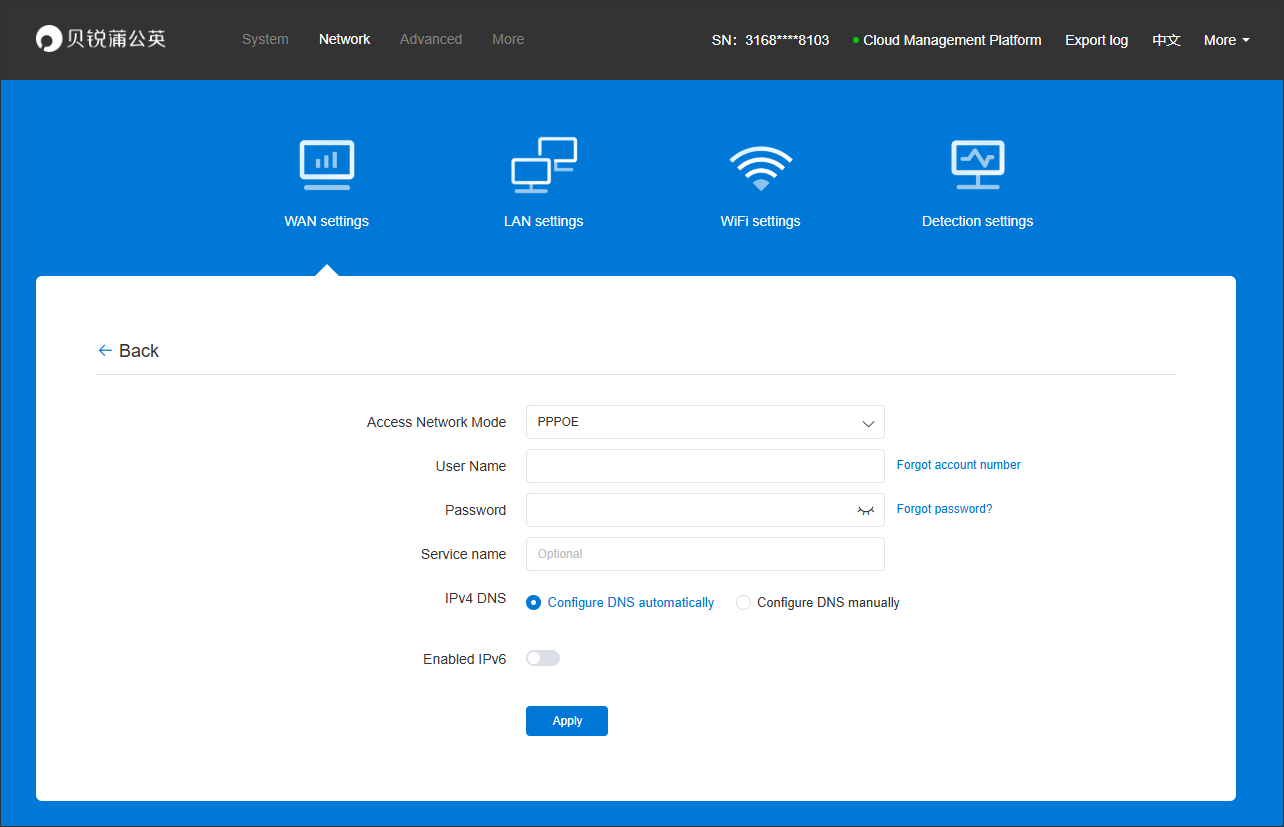

4.2 PPPOE

Enter the account&password provided by the broadband operator to dial up and access the internet.

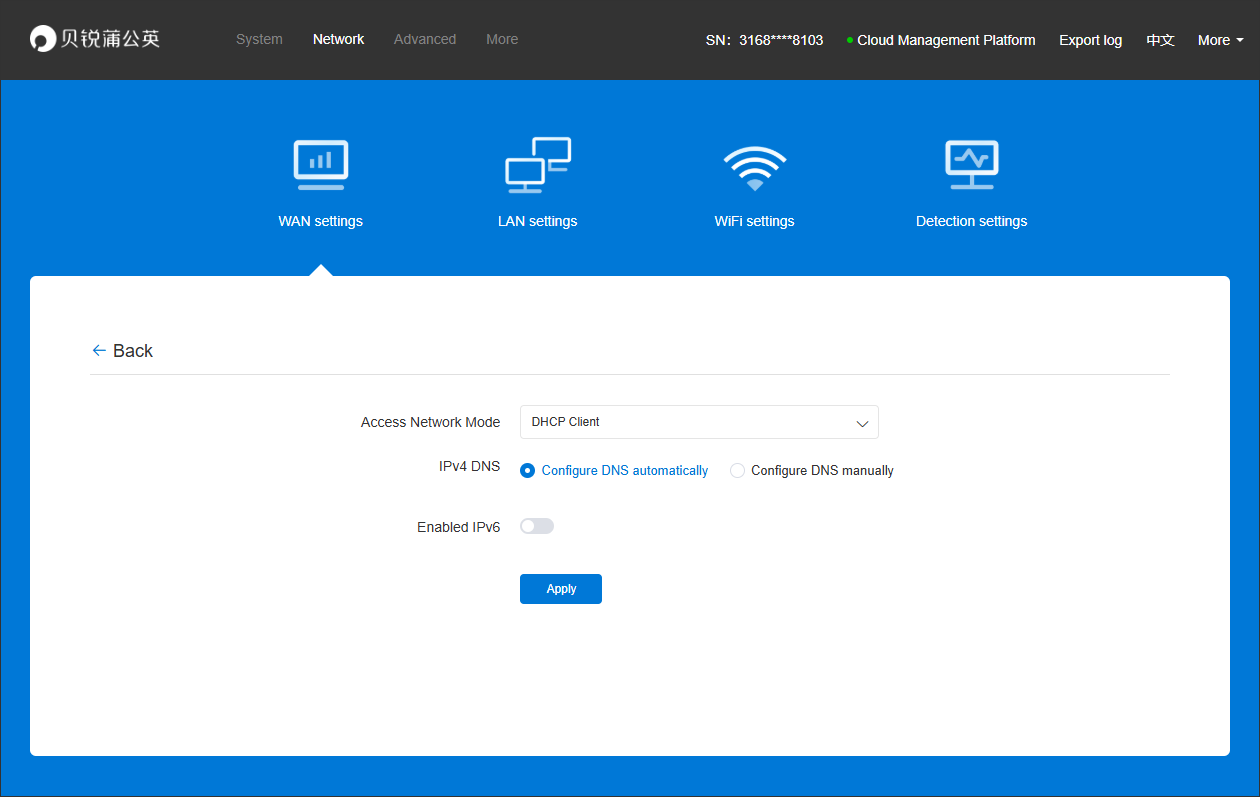

4.3 DHCP Client

Automatically obtain the IP address assigned by the upstream router for networking.

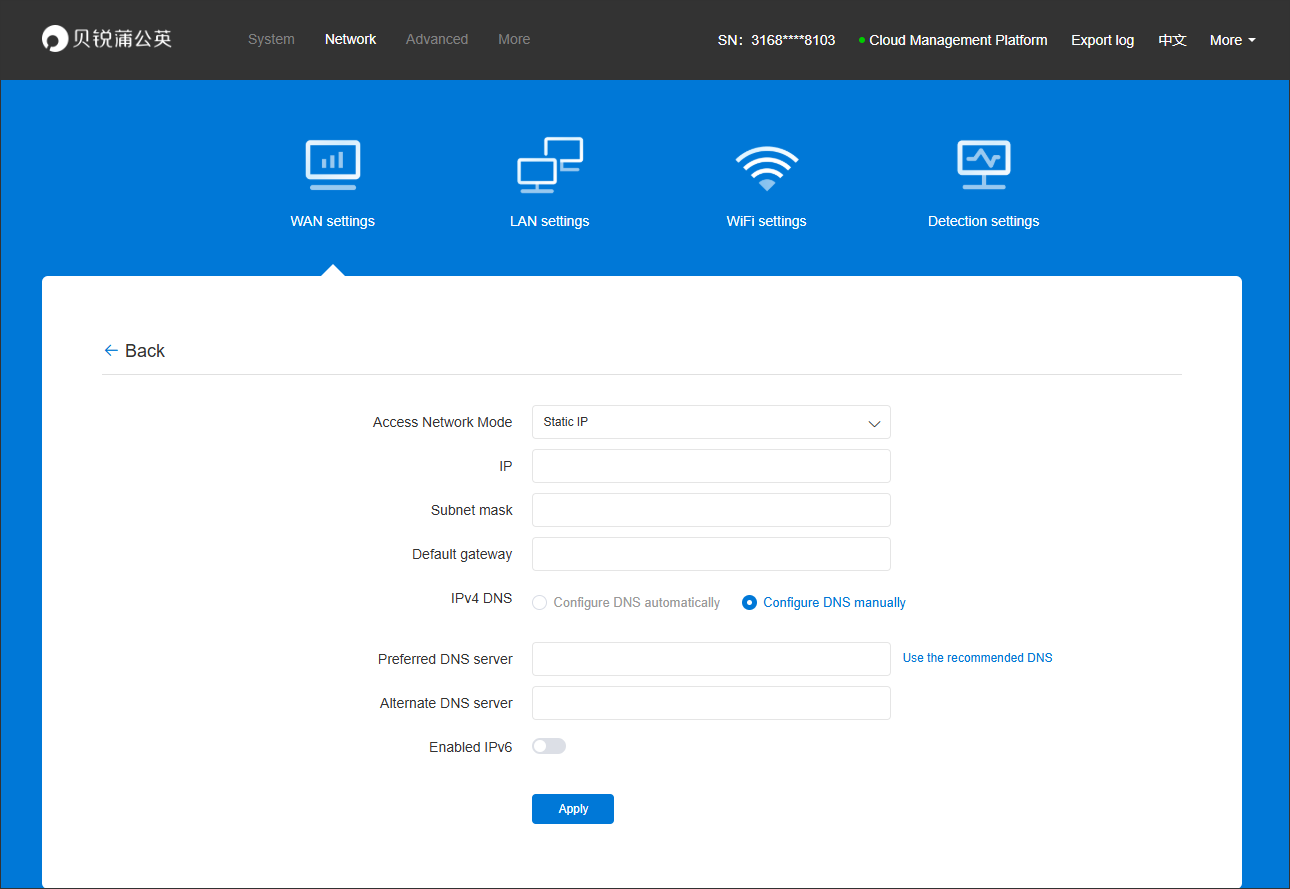

4.4 Static IP

Manually set the IP address, subnet mask, and gateway of the router's WAN port for networking.

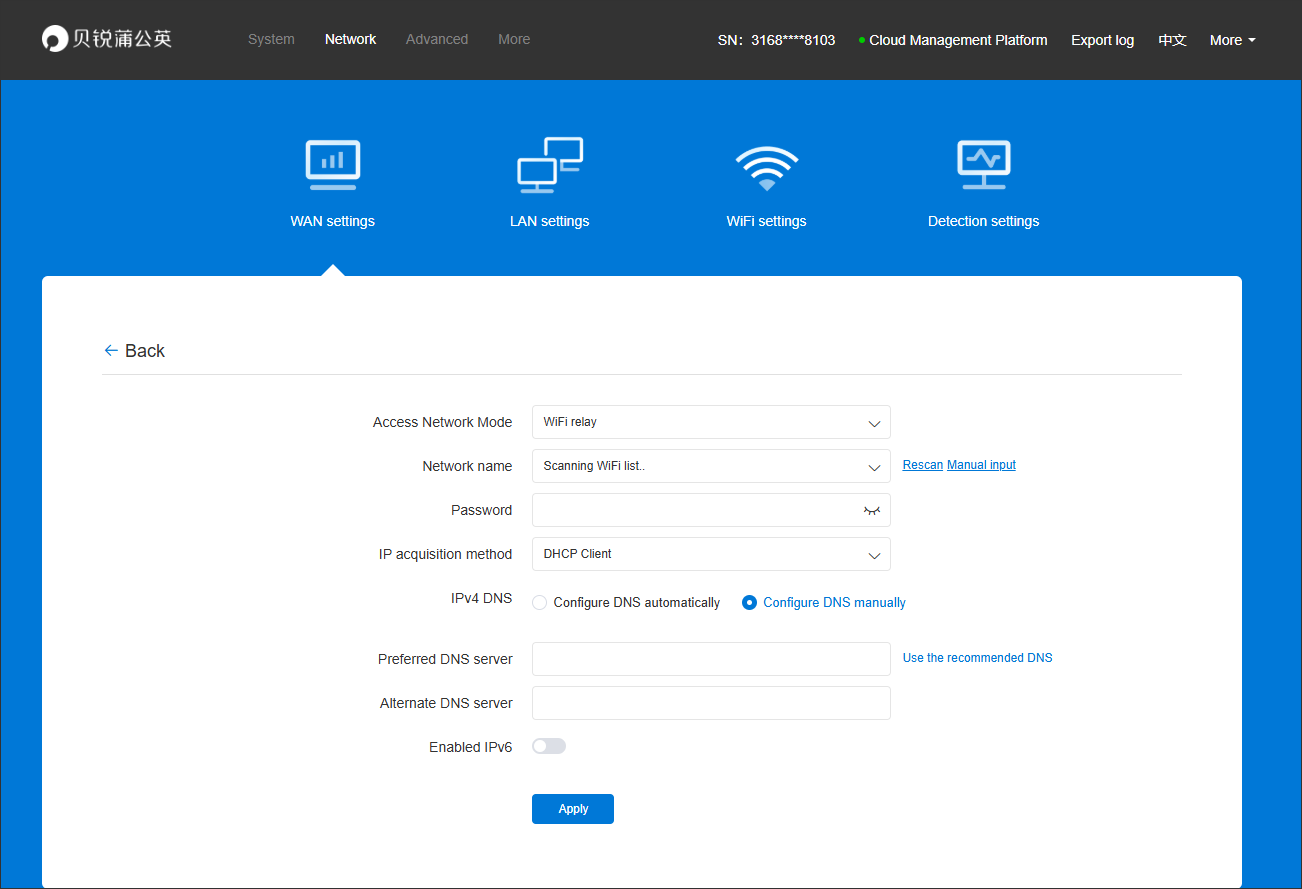

4.5 WIFI Relay

Connect to the internet by automatically scanning or manually entering nearby wireless networks.
